Triangle Optical gate design for WISE NEOSCO

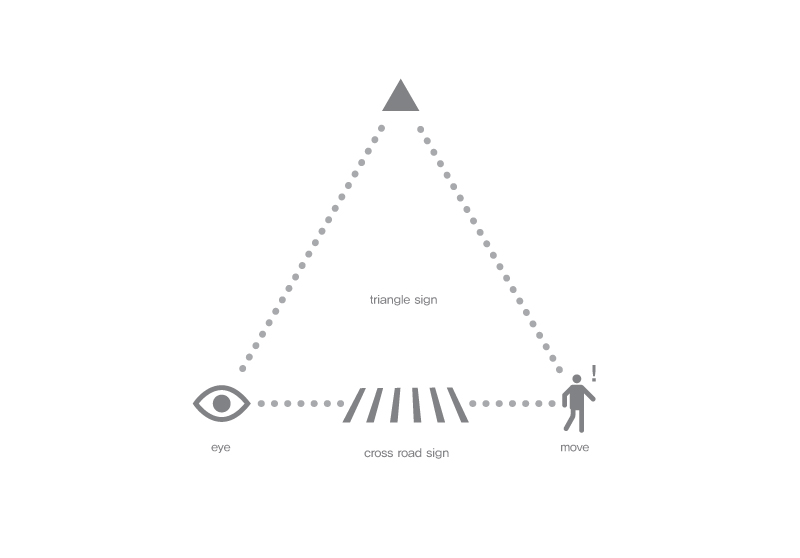

Triangle is one of the most generalized symbol that anyone can perceive the directivity. This is intuitive and known widely to people like the crossing index in cross walk . Using the trait of symbol with triangle we tried to develop the confusable directional gate into a gate design that has clear index.

There is no physical flapping bar for access control in the corridor, but the optical light indicates the status to the people passing through while it allows the library to be stay more calm. The LED helps triangle to be more recognizable. Since this design aims for harmony of form and function, all the readers(barcode scanner, RFID reader,, etc) are mounted in the triangle slope on the top front.

삼각형이라는 지표는 누구나 방향성을 인식 할 수 있는 가장 보편화 되어 있는 기호중의 하나로 이는 횡단보도의 건널목 지표처럼 직관적이고 사람들에게 널리 알려져 있다. 삼각형이 가진 기호의 특징을 이용해 방향성이 헷갈리기 쉬운 게이트를 명확한 지표를 가진 게이트 디자인으로 발전시키고자 하였다.

도서관이라는 특성을 고려하여 기존의 플랩 바를 없애고 소음을 최대한 최소화하여 제작된 오픈형 Optical Gate 디자인으로 방향지시를 알리는 삼각형 모양의 인지를 돕도록 LED등를 사용하였고 사용상의 편의를 위해 태그면이 경사를 이루고 있는 삼각형부분에 있으므로 인해 기능과 시각적 조형성의 조화가 자연스럽게 어우러지도록 하였다.

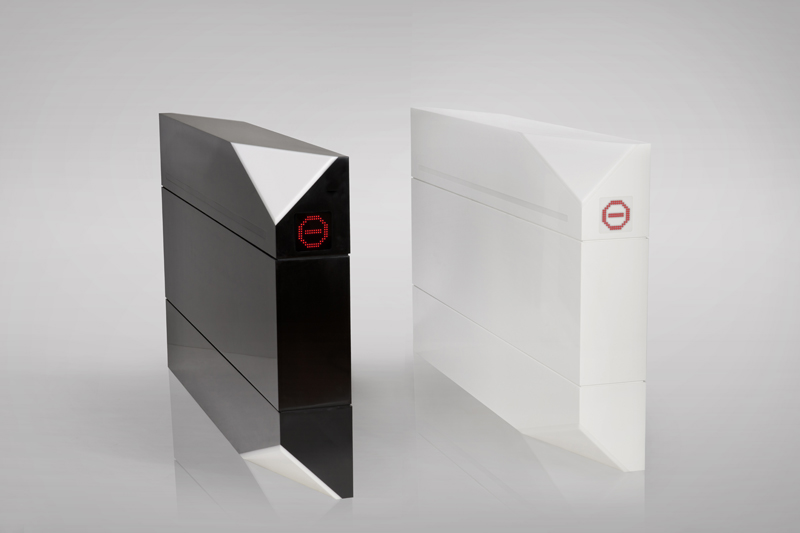

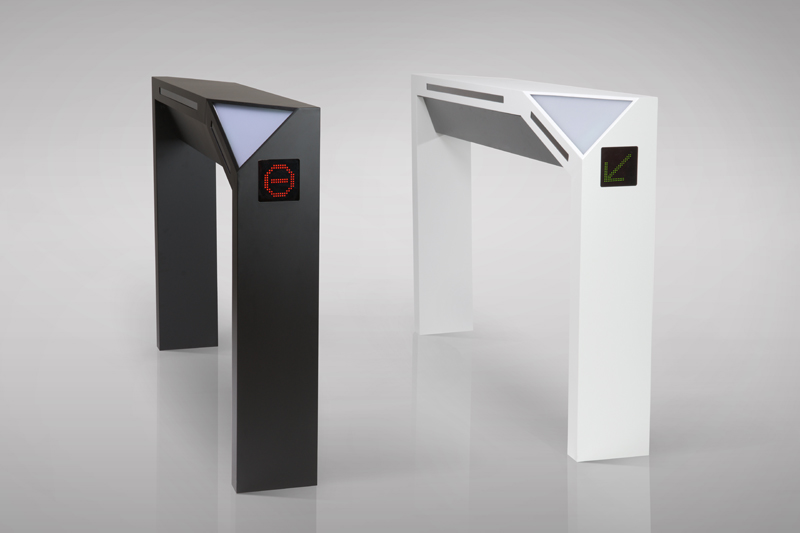

Black & White

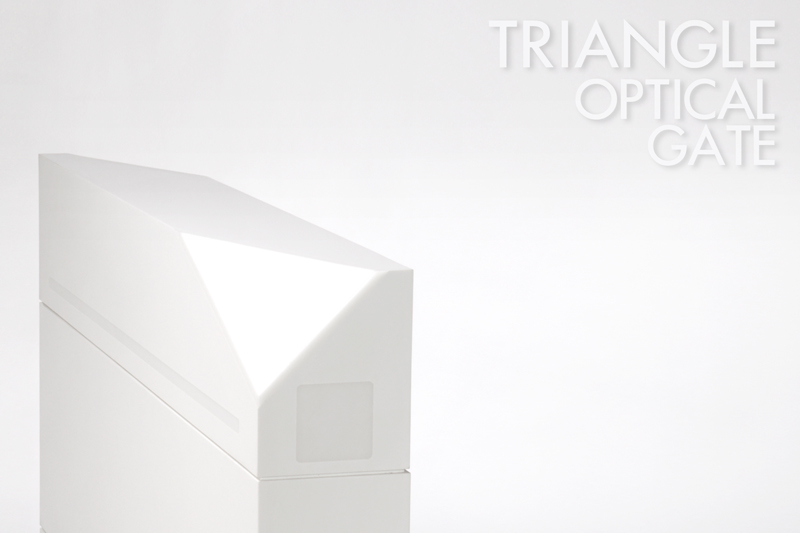

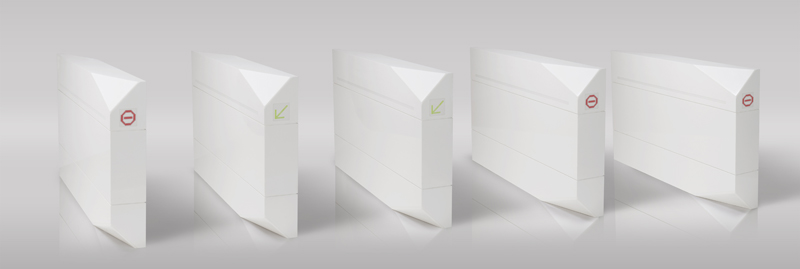

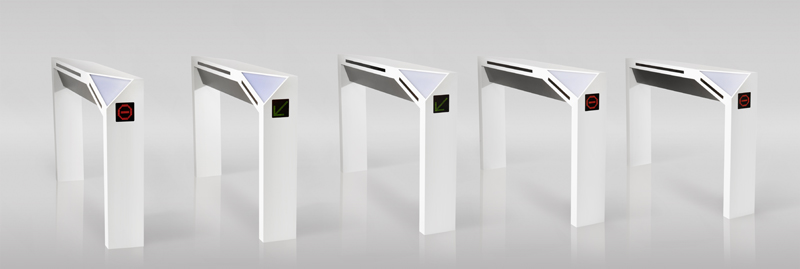

Material : white mock marble
Demenstion : 1600 * 220 * 920

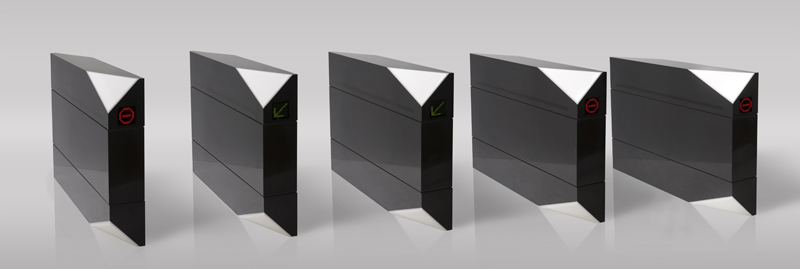

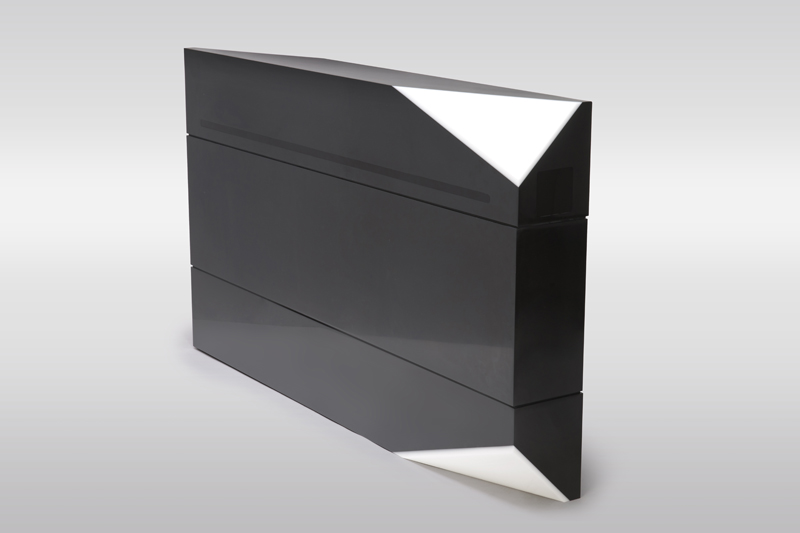

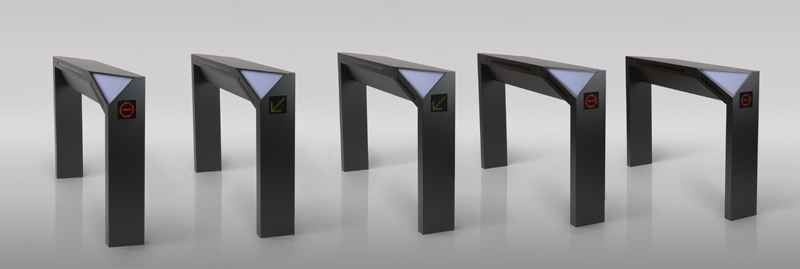

Material : black mock marble
Demenstion : 1600 * 220 * 920

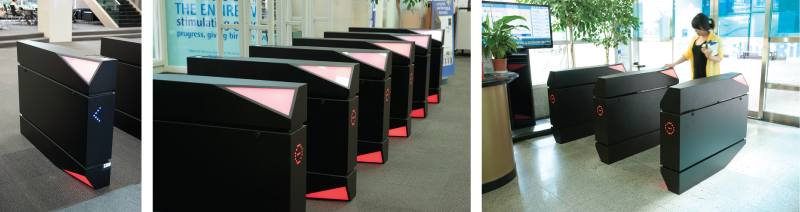

Prototype now working SOOK-MYUNG Women University

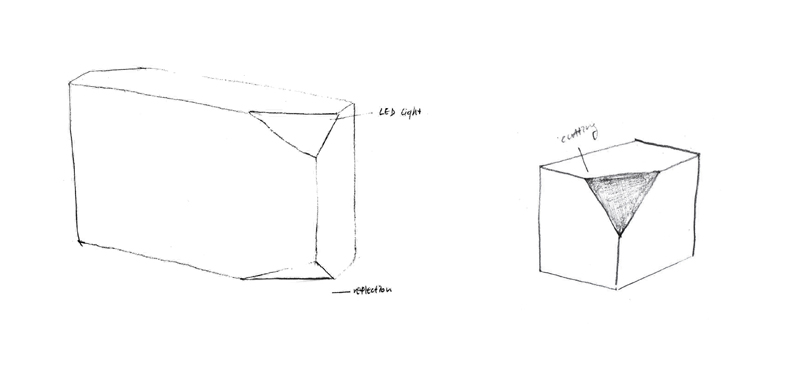

idea sketch

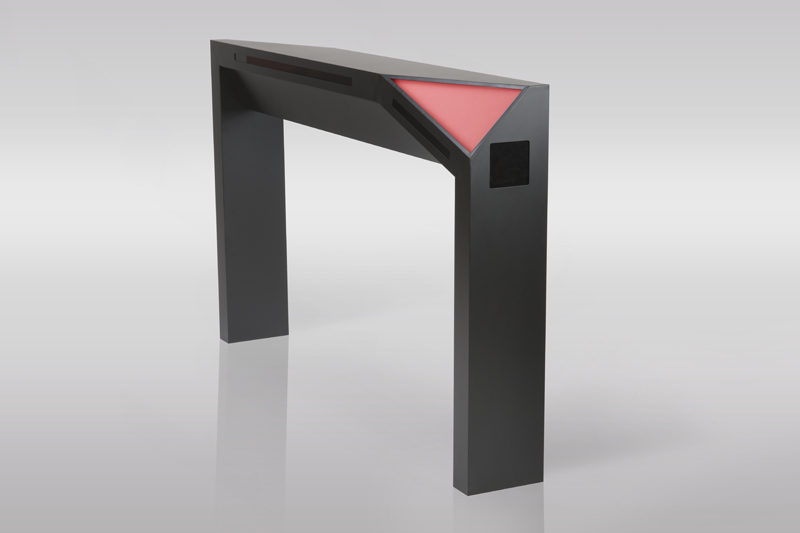

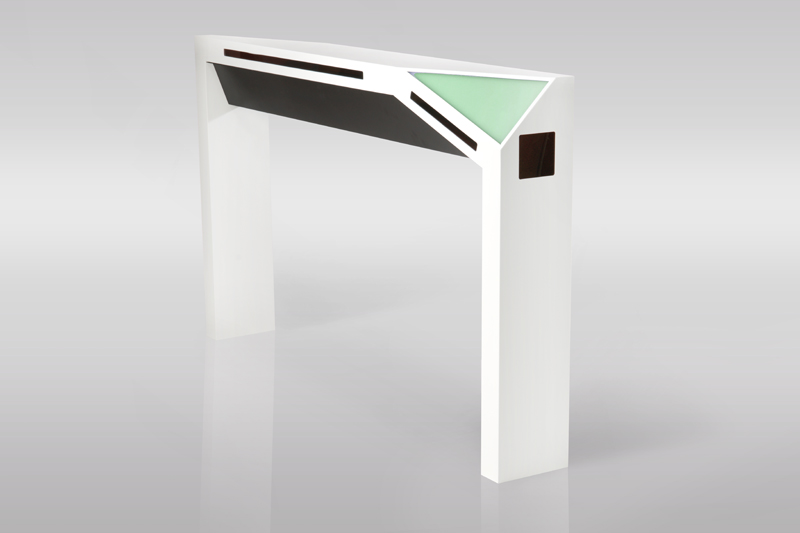

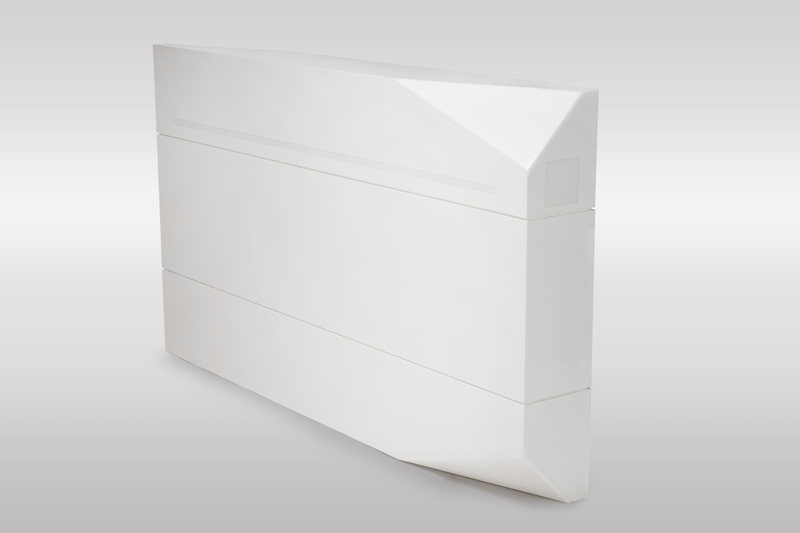

Material : steel, fission painting
Demenstion : 1600 * 200 * 920







Material : steel, fission painting
Demenstion : 1600 * 200 * 920
